Tutorial Ganti ic eMMC/eMCP ASUS_X01B(ZB630KL,ZB631KL) Langsung On

Ketua Teknisi HP    August 15, 2020    File emmc asus    Comment

Service emmc & Repair guide

EMMC ASUS X01BDA

Tutorial Ganti ic eMMC/eMCP ASUS_X01B(ZB630KL,ZB631KL) Langsung On.Untuk Jenis ic emmc bisa menggukan Hynix

Card/BGA: BGA (Discrete embedded) - High density MMC

Manufacturer ID: 0x90 (SK Hynix)

Product name: HCG8a4 (0x484347386134), rev: 0xA2, serial number: 0x2CA05845

Manufacturing date: Aug 2018

CID: 90014A48 43473861 34A22CA0 584585BE

CSD: D0270132 8F5903FF FFFFFFEF 8A400026

EXT_CSD revision: 1.8 (MMC v5.1)

Partition info:

 Boot1: 4096 KiB

 Boot2: 4096 KiB

 RPMB: 4096 KiB

 User area: 58.24 GiB(62,537,072,640 bytes)

Bisa Juga menggunakan ic emmc bawaan Redmi Note 5 Pro whyred.pada kasus ini kami melakukan pasanga kosongan.artinya setelah ic emmc dibeli bisa dilangsung di pasang tanpa perlu melakukan pengisian dump ini itu.kemudian lakukan flashing menggunakan Ufi box Maupun Tool Qualcomm Lainya

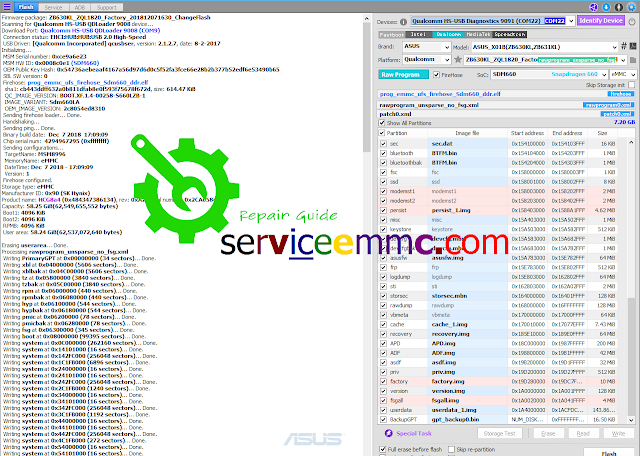

Untuk lebih jelas silahkan lihat gambar dan log yang telah kami cantumkan

FLASHING MENGGUNAKAN UFI BOX

Log FLashing Ufi Box;

Firmware package: sdm660_64-user 9 PKQ1 1684 release-keys

Scanning for Qualcomm HS-USB QDLoader 9008 device...

Download Port: Qualcomm HS-USB QDLoader 9008 (COM9)

Connection status: EHCI:HUB:HUB:USB 2.0 High-Speed

USB Driver: [Qualcomm Incorporated] qcusbser, version: 2.1.2.7, date: 8-2-2017

Initializing...

MSM Serial number: 0xce9a6e23

MSM HW ID: 0x0008c0e1 (SDM660)

OEM Public Key Hash: 0x54736aebeaaf4167a56d97d6d0c5f52fa3fce66e28b2b377b52edf6e53490b65

SBL SW version: 0

Firehose: prog_emmc_ufs_firehose_Sdm660_ddr.elf

sha1: cb443ddff632a0b811dfab8e0f593f75678f672d, size: 614.47 KiB

QC_IMAGE_VERSION: BOOT.XF.1.4-00258-S660LZB-1

IMAGE_VARIANT: Sdm660LA

OEM_IMAGE_VERSION: 2c8054ed8310

Sending firehose loader... Done.

Handshaking...

Sending ping... Done.

Binary build date:  Dec  7 2018  17:09:09

Chip serial num:  0 (0x0)

Sending configurations...

TargetName: MSM8996

MemoryName: eMMC

DateTime: Dec  7 2018 - 17:09:09

Version: 1

Firehose configured.

Storage type: eMMC

Manufacturer ID: 0x90 (SK Hynix)

Product name: HCG8a4 (0x484347386134), rev: 0xA2, serial number: 0x2CA05845

Capacity: 58.25 GiB(62,549,655,552 bytes)

Boot1: 4096 KiB

Boot2: 4096 KiB

RPMB: 4096 KiB

User area: 58.24 GiB(62,537,072,640 bytes)

Erasing userarea... Done.

Processing rawprogram0.xml

 Writing gpt_main0 at 0x00000000 (34 sectors)... Done.

 Writing xbl at 0x04000000 (24576 sectors)... Done.

 Writing tz at 0x05800000 (8192 sectors)... Done.

 Writing tzbak at 0x05C00000 (8192 sectors)... Done.

 Writing rpm at 0x06000000 (1024 sectors)... Done.

 Writing rpmbak at 0x06080000 (1024 sectors)... Done.

 Writing hyp at 0x06100000 (1024 sectors)... Done.

 Writing hypbak at 0x06180000 (1024 sectors)... Done.

 Writing pmic at 0x06200000 (1024 sectors)... Done.

 Writing fsg at 0x06300000 (8192 sectors)... Done.

 Writing boot at 0x08000000 (131072 sectors)... Done.

 Writing system at 0x0C000000 (2928400 sectors)... Done.

 Writing vendor at 0x10C000000 (1429280 sectors)... Done.

 Writing keymaster at 0x13E000000 (2048 sectors)... Done.

 Writing cmnlib at 0x13E200000 (2048 sectors)... Done.

 Writing cmnlib64 at 0x13E300000 (2048 sectors)... Done.

 Writing mdtpsecapp at 0x13E600000 (8192 sectors)... Done.

 Writing mdtp at 0x13EE00000 (65536 sectors)... Done.

 Writing modem at 0x142E00000 (225280 sectors)... Done.

 Writing dsp at 0x149C00000 (32768 sectors)... Done.

 Writing abl at 0x14AC00000 (2048 sectors)... Done.

 Writing dip at 0x14AE00000 (2048 sectors)... Done.

 Writing devinfo at 0x14AF00000 (8 sectors)... Done.

 Writing dpo at 0x14AF81000 (2 sectors)... Done.

 Writing splash at 0x14AF82000 (66848 sectors)... Done.

 Writing limits at 0x14D026000 (8 sectors)... Done.

 Writing toolsfv at 0x14D027000 (2048 sectors)... Done.

 Writing logfs at 0x150000000 (16384 sectors)... Done.

 Writing ddr at 0x154000000 (2048 sectors)... Done.

 Writing sec at 0x154100000 (32 sectors)... Done.

 Writing fsc at 0x158000000 (2 sectors)... Done.

 Writing ssd at 0x158001000 (16 sectors)... Done.

 Writing modemst1 at 0x158003000 (4096 sectors)... Done.

 Writing modemst2 at 0x158203000 (4096 sectors)... Done.

 Writing persist at 0x158403000 (9464 sectors)... Done.

 Writing misc at 0x15A403000 (2048 sectors)... Done.

 Writing keystore at 0x15A503000 (1024 sectors)... Done.

 Writing devcfg at 0x15A583000 (2048 sectors)... Done.

 Writing asusfw at 0x15A783000 (131072 sectors)... Done.

 Writing frp at 0x15E783000 (1024 sectors)... Done.

 Writing logdump at 0x15E803000 (131072 sectors)... Done.

 Writing sti at 0x162803000 (4096 sectors)... Done.

 Writing storsec at 0x164000000 (256 sectors)... Done.

 Writing rawdump at 0x168000000 (262144 sectors)... Done.

 Writing vbmeta at 0x170000000 (128 sectors)... Done.

 Writing cache at 0x170010000 (15224 sectors)... Done.

 Writing recovery at 0x185E10000 (131072 sectors)... Done.

 Writing APD at 0x18C000000 (409600 sectors)... Done.

 Writing ADF at 0x198800000 (86016 sectors)... Done.

 Writing asdf at 0x19B200000 (65536 sectors)... Done.

 Writing priv at 0x19D200000 (1024 sectors)... Done.

 Writing factory at 0x19D280000 (20480 sectors)... Done.

 Writing version at 0x1A0000000 (256 sectors)... Done.

 Writing fsgall at 0x1A0020000 (8192 sectors)... Done.

Reset power ... Done.

Flashing completed in 2 mins 12.629 s

Pastikan untuk mencentang show All pertition dan lakukan centang,setelah selesai smartphone akan reboot dan otomatis akan masuk menu.

FILE CSC ASUS X01BDA

Rom masi menggunakan file csc,kemudian lanjutkan flash menggunaka row lewat fastboot

FILE RAW ASUS X01BDA

Sampe disini proses berjalan dengan baik tanpa gendala apapun,jika mengalami masalah pda baseband silahkan write menggunakan file yang telah tersedia(Mode Edl).untuk bahan bahan silahkan download dibawah ini:

BASEBAND UNKNOWN

File Ganti ic eMMC Asus X01BD Langsung on

File Sakti ZB630KL,ZB631KL

File Raw ZB630KL,ZB631KL

Fix Baseband ZB630KL,ZB631KL)

FIX BASEBAND

Sekian,Tutorial Ganti ic eMMC/eMCP ASUS_X01B(ZB630KL,ZB631KL) Langsung On.Selamat mencoba dan semoga sukses.Download juga Kumpulan File Dump eMMC asus Terbaru dan Lengkap
