#Jadulan_TUTORIAL Sukses Ganti ic eMMC ASUS Z008D(ZE550ML)+ON.Tutorial ini merupakan tutorial jadulan tapi mantap 😍😍😍😍😍.Langsung saja,berikut langkah perbaikan ic emmc/ganti atau yang mengalami masalah getar only-Bootloop Nakal-dAN Keluar Notifikasi Aplikasi ini itu terhenti.
Untuk kasus permasalahan Os'/FLashing silahkan langsung flash menggunakan file ini Kumpulan File Raw Asus Lengkap disana sudah kami sediakan File+Tutorial.
Untuk yang ingin melakukan pergantian ic emmc bebas menggunakan ic emmc apa saja,soalnya untuk ini kasus tidak ribet.boleh juga melihat panduan ini Support IC Emmc Sejuta umat(Mendukung Banyak Model).Kemudian ambil dumpnya disini Kumpulan FIle Dump eMMC/Emcp Asus Lengkap
Log Info Konfigurasi ic eMMC ASUS Z008D(ZE550ML
VCC: 3.3 V, VCCQ: 2.8 V
Bus: 4 bit (HS SDR 52MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
Card/BGA: BGA (Discrete embedded) - High density MMC
Manufacturer ID: 0x90 (SK Hynix)
Product name: HAG2e (0x484147326505), rev: 0x03, serial number: 0xE335B154
Manufacturing date: Apr 2015
CID: 90014A48 41473265 0503E335 B15442C2
CSD: D0270132 0F5903FF FFFFFFEF 8A4040D2
EXT_CSD revision: 1.7 (MMC v5.0, v5.01)
Capacity: 14.69 GiB(15,774,777,344 bytes)
Partition info:
Boot1: 4096 KiB
Boot2: 4096 KiB
RPMB: 4096 KiB
User area: 14.68 GiB(15,762,194,432 bytes)
Cache size: 1 MiB
Partition configuration: 0x00
No boot acknowledge is sent (default)
Device is not boot-enabled (default)
Partitioning support: 0x07
Device support partitioning feature
Device can have enhanced technological features
Device partitioning possible
Boot configuration protection: 0x00
Boot bus conditions: 0x00
Boot area write protection: 0x10
Power-on write protection: possible
Permanent write protection: not possible
Lock status: not locked
User area write protection: 0x10
Password protection features: enabled
Power-on write protection: possible
Permanent write protection: not possible
Lock status: not locked
EXT_CSD backup saved to "\\%BACKUPS%\HAG2e_E335B154.ext_csd"
ANDROID ROM detected:
platform: moorefield, cpu abi: x86
manufacturer: asus
board: moorefield, name: WW_Z00A
brand: asus, model: ASUS_Z00A
build id: LRX21V, version: 5.0 (WW-ASUS_Z00A-2.2.30.1_20150923_7795_eng test-keys)
build description: asusmofd_fhd-eng 5.0 LRX21V 2.2.30.1_20150923_7795_eng test-ke
Log diatas merupakan config/emmc original asli dari bawaan pabrik😃...
Setelah proses pemasangan ic emmc smartpone wajib getar,kemudian tekan tombol atas sambil ditahan lalu koneksikan pada Komputer,maka smartphone akan terditeksi mode Fastboot dan siap untuk dilakukan flashing
Log Flashing
Rebooting to bootloader... Done.
Waiting for fastboot to be ready... Done.
Processing fastboot flashing on ASUS Android Bootloader Interface[F6AZFG14L631]
Do not turn off the device !!!
oem erase_osip_header
... (bootloader) cmd_oem!arg= erase_osip_header S
(bootloader) [0]erase_osip_header S
OKAY [ 1.063s]
finished. total time: 1.063s
oem erase_token tmp.out 2 tmp.err
... (bootloader) cmd_oem!arg= erase_token S
(bootloader) [0]erase_token S
OKAY [ 0.905s]
finished. total time: 0.905s
oem start_partitioning
... (bootloader) cmd_oem!arg= start_partitioning S
(bootloader) [0]start_partitioning S
(bootloader) Start partitioning
OKAY [ 1.137s]
finished. total time: 1.137s
Flashing /tmp/partition.tbl (2.23 KiB)
target reported max download size of 536870912 bytes
sending '/tmp/partition.tbl' (2 KB)... OKAY [ 0.795s]
writing '/tmp/partition.tbl'... OKAY [ 1.031s]
finished. total time: 1.827s
oem partition /tmp/partition.tbl
... (bootloader) cmd_oem!arg= partition /tmp/partition.tbl S
(bootloader) [0]partition S
(bootloader) [1]/tmp/partition.tbl S
OKAY [ 1.145s]
finished. total time: 1.145s
erase factory partition...
erasing 'factory'... OKAY [ 1.222s]
finished. total time: 1.222s
erase config partition...
erasing 'config'... OKAY [ 1.217s]
finished. total time: 1.217s
erase cache partition...
erasing 'cache'... OKAY [ 1.339s]
finished. total time: 1.339s
erase APD partition...
erasing 'APD'... OKAY [ 1.312s]
finished. total time: 1.312s
erase ADF partition...
erasing 'ADF'... OKAY [ 1.187s]
finished. total time: 1.187s
erase system partition...
erasing 'system'... OKAY [ 3.935s]
finished. total time: 3.935s
erase data partition...
erasing 'data'... OKAY [ 8.181s]
finished. total time: 8.181s
oem wipe splashscreen
... (bootloader) cmd_oem!arg= wipe splashscreen S
(bootloader) [0]wipe S
(bootloader) [1]splashscreen S
(bootloader) CMD 'wipe /splashscreen'... (bootloader) erasing volume "/splashscreen", size=4194304... (bootloader) wrote ret 194304, count 2, "/dev/block/by-name/splashscreen
(bootloader) read back ret 194304, count 2 "/dev/block/by-name/splashscre
OKAY [ 1.198s]
finished. total time: 1.198s
oem stop_partitioning
... (bootloader) cmd_oem!arg= stop_partitioning S
(bootloader) [0]stop_partitioning S
(bootloader) Stop partitioning
OKAY [ 1.052s]
finished. total time: 1.052s
Flashing fastboot (14.01 MiB)
target reported max download size of 536870912 bytes
sending 'fastboot' (14350 KB)... OKAY [ 1.214s]
writing 'fastboot'... OKAY [ 1.500s]
finished. total time: 2.715s
Flashing token (3.52 KiB)
target reported max download size of 536870912 bytes
sending 'token' (3 KB)... OKAY [ 0.773s]
writing 'token'... OKAY [ 1.172s]
finished. total time: 1.946s
Flashing ifwi (4 MiB)
target reported max download size of 536870912 bytes
sending 'ifwi' (4096 KB)... OKAY [ 0.902s]
writing 'ifwi'... OKAY [ 2.130s]
finished. total time: 3.032s
Flashing splashscreen (126.21 KiB)
target reported max download size of 536870912 bytes
sending 'splashscreen' (126 KB)... OKAY [ 0.780s]
writing 'splashscreen'... OKAY [ 1.076s]
finished. total time: 1.857s
Flashing boot (11.09 MiB)
target reported max download size of 536870912 bytes
sending 'boot' (11360 KB)... OKAY [ 1.114s]
writing 'boot'... OKAY [ 1.391s]
finished. total time: 2.506s
Flashing recovery (11.40 MiB)
target reported max download size of 536870912 bytes
sending 'recovery' (11676 KB)... OKAY [ 1.123s]
writing 'recovery'... OKAY [ 1.407s]
finished. total time: 2.532s
Flashing APD (179.66 MiB)
target reported max download size of 536870912 bytes
erasing 'APD'... OKAY [ 1.281s]
sending 'APD' (183971 KB)... OKAY [ 6.238s]
writing 'APD'... OKAY [ 6.940s]
finished. total time: 14.460s
Flashing system (2.10 GiB)
target reported max download size of 536870912 bytes
erasing 'system'... OKAY [ 2.695s]
sending sparse 'system' (517016 KB)... OKAY [ 23.389s]
writing 'system'... OKAY [ 15.820s]
sending sparse 'system' (523589 KB)... OKAY [ 20.076s]
writing 'system'... OKAY [ 15.769s]
sending sparse 'system' (521098 KB)... OKAY [ 19.325s]
writing 'system'... OKAY [ 16.853s]
sending sparse 'system' (523880 KB)... OKAY [ 19.118s]
writing 'system'... OKAY [ 16.301s]
sending sparse 'system' (115737 KB)... OKAY [ 4.718s]
writing 'system'... OKAY [ 4.549s]
finished. total time: 158.616s
reboot
rebooting... finished. total time: 0.530s
Fastboot flashing completed in 5 mins 37.733 s

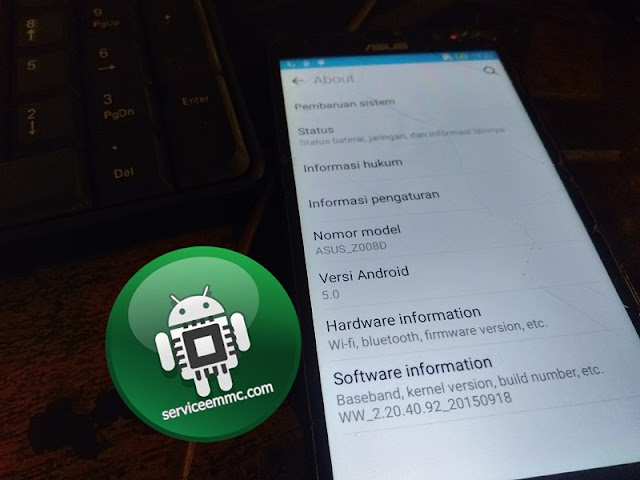

Setelah proses flahsing smartphone akan reboot secara otomatis dan lihat hasilnya???
Sekian.#Jadulan_TUTORIAL Sukses Ganti ic eMMC ASUS Z008D(ZE550ML)+ON.Selamat mencoba dan semoga sukses.
 |
